TRENDnet 2-Port USB KVM Switch Kit with Audio
| |
Item Code: |
TK-209K |
| |
Availability: |
In Stock. |
| |
Price: |
$
23.95 |
|
 |
$
23.95 |
|
|
 |

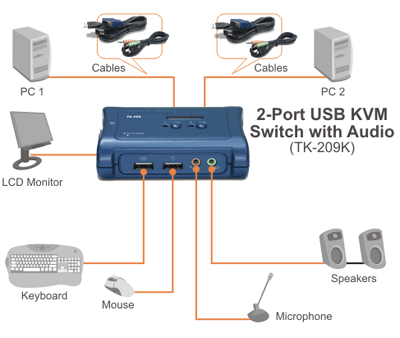

The 2-Port USB Audio KVM Switch lets
you control multimedia PCs with just one keyboard, monitor, mouse,
microphone, and a set of speakers. The KVM switch not only allows
you to share your monitor, keyboard and mouse but you can also
share microphone and speakers. With just a simple press of a button,
this KVM switch eliminates the hassle of cable swapping and switching
between 2 PCs. With it's Hot-Plug, Auto-Scan and Hot-Key operating
features, the TK-209K is the perfect choice for managing 2 PCs.
Separate KVM cables are included.
| Features |
- Use one keyboard, monitor, and mouse to control two computers
- 2-port USB KVM Switch with 1 set of Mic/Speaker port.
- 2 sets of VGA and 2 sets of Audio & Microphone Cables
- Supports Microsoft IntelliMouse, Optical Mouse, Logitech
Net Mouse and more
- Supports super High Video Quality, up to 2048 x 1536 VGA
resolution
- Supports Windows 98(SE)/ME/2000/XP/2003 Server, Linux, and
Mac OS
- Multi-Platform supports for PCs, Macintosh G3/G4, iMac and
Mac Mini
- Auto-Scan & LED display for PCs monitoring
- Hot-Key, push button and Windows-based client switching software
- User definable hot-key (Windows Only)
- Plug & Play and Hot-Pluggable
- USB Interface Power method
- 2-Year Warranty
|
|
| Specifications |
| Hardware |
| Management |
2 Computers |
| USB Interface |
USB 1.1 Specifications Compliant |
| KVM Cable |
- 2 Sets of 1.2M (4ft) KVM Cables
- 2 Sets of Audio/Microphone Cables (USB mini B to 3.5mm Jack)
|
Cable Interface
(All Male) |
| |
To KVM |
To PC |
KVM
|
|
- 1 x USB (Type A)
- 1 X VGA/SVGA HDB 15-pin
|
Audio
|
|
- 1 x 3.5mm audio in/out jack
- 1 x 3.5mm microphone in/out jack
|
|
| Console Connectors |
- 1 x USB Keyboard (Type A)
- 1 x USB Mouse (Type A)
- 1 x VGA/SVGA HDB 15-pin
- 1 x 3.5mm audio in/out jack
- 1 x 3.5mm microphone in/out jack
|
| Port Selection |
Push Button, Hot-Key Commands or
Windows-Based Client Switching Software |
| Auto-Scan Interval |
10 ~ 60 seconds |
| Keyboard Status |
Saved and Restored |
| Power Type |
USB Interface Power |
| Dimensions |
98 x 70 x 28 mm (3.86 x 2.76 x 1.1
in.) |
| Weight |
100 g (3.6 oz) |
| Temperature |
- Operating: 0°C ~ 40°C (32°F
~104°F)
- Storage: -20°C ~ 60°C (-4°F ~140°F)
|
| Humidity |
0%~90%, Non-Condensing |
| Certifications |
CE, FCC |
| |
|
| KVM Interface |
|
|
| KVM Solution |
|
|
|
|
|
