TRENDnet 4-Port USB KVM Switch Kit with Audio
| |
Item Code: |
TK-409K |
| |
Availability: |
In Stock. |
| |
Price: |
$
61.95 |
|
 |
$
61.95 |
|
|
 |

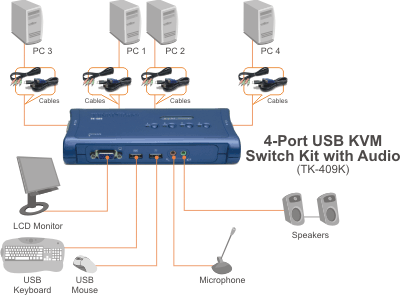

The 4-Port USB KVM Switch with Audio
lets you manage 4 computers with just one set of keyboard, monitor,
mouse, and a set of speakers/Microphone. The device
comes with 4 sets of USB KVM and Audio cables, no additional equipment
required. Its compact size makes it ideal for home and business
environment.
| Features |
- Use one keyboard, monitor, and mouse to control four
computers
- 4-port USB KVM Switch with 1 set of Microphone/Speaker
port
- 4 sets of VGA and 4 sets of Audio & Microphone Cables
- Supports Microsoft IntelliMouse, Optical Mouse, Logitech
Net Mouse and more
- Supports super High Video Quality, up to 2048 x 1536
VGA resolution
- Supports Windows 98(SE)/ME/2000/XP/2003 Server, Linux,
and Mac OS
- Multi-Platform supports for PCs, Macintosh G3/G4, iMac
and Mac Mini
- Auto-Scan & LED display for PCs monitoring
- Hot-Key, push button and Windows-based client switching
software
- User definable hot-key (Windows Only)
- Plug & Play and Hot-Pluggable
- USB Interface Power method
- 2-Year Warranty
|
|
| Specifications |
| Hardware |
Management |
4 Computers |
USB Interface |
USB 1.1 Specifications Compliant |
KVM Cable |
- 4 Sets of 1.2M (4ft) KVM Cables
- 4 Sets of Audio/MIC Cables
|
Cable Interface
(All Male) |
| |
To KVM |
To PC |
KVM
|
|
- 1 x USB (Type A)
- 1 X VGA/SVGA HDB 15-pin
|
Audio
|
- 1 x 3.5mm audio in/out jack
- 1 x 3.5mm microphone in/out jack
|
- 1 x 3.5mm audio in/out jack
- 1 x 3.5mm microphone in/out jack
|
|
Console Connectors |
- 1 x USB Keyboard (Type A)
- 1 x USB Mouse (Type A)
- 1 x VGA/SVGA HDB 15-pin
- 1 x 3.5mm audio in/out jack
- 1 x 3.5mm microphone in/out jack
|
Port Selection |
Push Button, Hot-Key Commands or
Windows-Based Client Switching Software |
Auto-Scan Interval |
10 ~ 60 seconds |
Power Type |
USB Interface Power |
Dimensions |
167 x 80 x 28mm (6.6 x 3.2 x 1.1in.) |
Weight |
185 g (6.5 oz.) |
Temperature |
- Operating: 0°C ~ 40°C (32°F
~104°F)
- Storage: -20°C ~ 60°C (-4°F ~140°F)
|
Humidity |
0%~90%, Non-Condensing |
Certification |
CE, FCC |
|
| KVM Interface |
|
|
| KVM Solution |
|
|
|
|
|
