TRENDnet 8-Port 10/100Mbps Layer 2 Managed Switch with 100Base-FX Port
| |
Item Code: |
TE100-S810Fi |
| |
Availability: |
In Stock. |
| |
Price: |
$
204.95 |
|
 |
$
204.95 |
|
|
 |
The 8-port 10/100Mbps Layer 2 Managed
Switch provides exceptional performance, ease of use and flexibility
for expanding business networks with fiber connection. Utilizing
a robust 3.8Gbps backplane, your managed switch can easily accommodate
multiple switches and relieve server congestion by using its built-in
fiber port. Advanced management features include SNMP, VLAN, IGMP,
and Port security.
| Features |
- 8 x 10/100Mbps Auto-MDIX Port
- 1
x 100Base-FX SC type Multi-Mode Fiber Port
- Supports
switch Fabric up to 3.8GBps
- Layer 2 Management Switch
with Full Software Support
- IGMP Snooping with Query
Mode Support for Multi-Media Application
- Supports Broadcast
Storm Filtering
- Supports
Port Status Control (Status, Auto-Negotiation, Speed, Duplex and
Flow Control)
- Supports Port Trunking with Flexible
Load Distribution Control and Fail-Over Functions
- Supports
Port-Based VLAN and IEEE 802.1Q Tag-Based VLAN
- Supports
IP Multicast, Port Mirroring, Spanning Tree, SNMP and RMON
- Supports
Port Security and IEEE 802.1p Class of Services
- Store-and-Forward
Switching Architecture with Non-Blocking Wire-Speed Performance
- Configuration via RS-232 Console Port, Telnet, and Web Browser
(HTTP)
- TFTP
Firmware Upgrade via Browser
- Configuration File Save and
Restore Feature Support
- 5-Year Warranty
|
|
| Specifications |
| Hardware |
| Standards |
IEEE 802.3 10Base-T Ethernet; IEEE
802.3u 100Base-TX Fast Ethernet
IEEE 802.3x Flow Control; IEEE
802.1D Spanning Tree IEEE 802.1q Tag-based VLAN; IEEE 802.1p Class
of Service
IEEE 802.3ad Link Aggregation |
| Interface |
8 x 10/100Mbps Auto-MDIX RJ45 Fast Ethernet Port
1 x 100Base-FX SC type Fiber Port |
| Packet Forwarding and Filtering Rate |
100M Ethernet: 148,800 packets per second per port
10M Ethernet: 14,880 packets per second per port |
| Cabling |
Fast Ethernet: UTP/STP Cat. 5, EIA/TIA-568 100-ohm,
100 meters max Fiber: (50/125um, 62.5/125um), 2km max |
| Console Port |
RS-232, female 9-Pin Serial Port (M-M serial cable
included) |
| Protocol/Topology |
(CSMA/CD) / Star |
| Buffer Memory |
2Mbits Data Buffer |
| Filtering Address Table |
8K MAC Address Entries |
| Bandwidth |
Up to 3.8Gbps |
| LED Display |
Power, Link/Activity, Full Duplex/Collision |
| Power |
Input: 100~240VAC, 50/60Hz Internal Power Supply |
| Power Consumption |
17 watts |
| Dimensions |
250 x 133 x 37mm (9.8 x 5.2 x 1.5 inch) (W x H
x D) |
| Weight |
1.08 Kg. (2.4 lb.) |
| Temperature |
Operating: 0° ~ 45° C (32° ~
113° F)
Storage: -40° ~ 70° C (-40° ~
158° F) |
| Humidity |
10% ~ 90% non-condensing |
| Safety Emissions |
FCC, CE |
| Software |
| Management |
Web Management, RS-232 Console Management, Telnet |
| Trunk |
Max 4 Groups ( up to 4 Ports per group) |
| Class of Service |
Supports High and Low Priority |
| QoS |
Supports 8 Levels Priority and Mapping to High/Low
Priority Queue for Class of Service |
| VLAN |
Up to 256 VLAN groups and up to 4094 VLAN ID |
| IP Multicast |
IGMP Snooping up to 256 groups 2 Types of Query
Mode: Enable/Disable or Auto Query |
| Filter Database |
Port Static MAC address lock, MAC filter and Port
Security |
| Port Mirror |
Up to 8 ports |
| Broadcast Control |
None, 5%, 10%, 15%, 20%, 25% |
| Spanning Tree |
IEEE 802.1d Support |
| RFC Standard |
RFC1157 SNMP, RFC 1213 MIB II, Bridge MIB, RFC
1643 Ethernet Like, RFC 1493 Bridge MIB, RFC 1757 RMON1, RFC 1215
Trap, RFC 768 UDP, RFC 783 TFTP, RFC 791 IP, RFC 792 ICMP, RFC
854 TELNET Server/Client, RFC 1112 IGMP, RFC 2068 HTTP, private
MIB, RFC 2674 VLAN MIB |
|

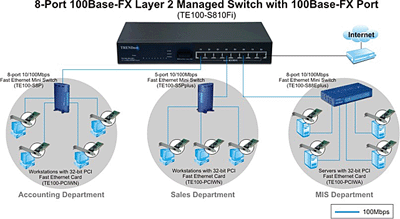

| Management Switch Networking Solution |
|
|
|
|
|
