TRENDnet 8-Port 10/100Mbps PoE Fast Ethernet Switch

	Item Code:	TPE-S44
	Availability:	In Stock.
	Price:	$ 79.95
		$ 79.95

8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.

TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.

Features

IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
Built-in 4 PoE Ports (Port 1 ~ Port 4)
Supports PoE Power Maximum 15.4 watts for each POE port
Supports PoE Powered Device(PD) classification identify
Full Wire-Speed Non-Blocking Reception and Transmission
Store and Forward Switching Method
96Kbytes RAM Data Buffer and 1K entries MAC Address Table
Extensive Diagnostic LED’s on the Front Panel
IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode
5-Year Warranty

Specifications
Hardware
Standard	IEEE 802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3af Power over Ethernet
Network Media	10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5, 5E, 6 Unshielded Cable
Protocol / Topology	CSMA/CD ; Star
Ports	4 x 10/100Mbps Auto-MDIX POE Ports (1~4) 4 x 10/100Mbps Auto-MDIX Fast Ethernet Ports (5 ~8)
Data Transfer Rate	Ethernet: 10/20Mbps (half/full duplex) Fast Ethernet: 100/200Mbps (half/full duplex)
RAM Buffer / Filtering	96 Kbytes / 1K entry per device
Power	48V DC 0.8A External Power Adapter
Diagnostic LEDs	Per Unit: Power, Power MAX Per Port: Link/Activity, Speed PoE: PoE Status, Link/Activity, Speed
Power Consumption	6.3 watts max (no PD Device connected) 36.3 watts max (with 30w PoE Device connected)
Temperature	Operating: 0° ~ 40° C (32° ~ 104°F) Storage: -10° ~ 70° C (14° ~ 158°F)
Humidity	10%- 90% (non-condensing)
Dimensions	171 x 98 x 29mm (6.7 x 3.7 x 1.1in.)
Weight	430g (13.8oz.)
Certification	FCC, CE

PoE
Power over Ethernet	Up to 15.4 watts per Port; PD classification Identify PoE Over Current Protection; PoE Circuit Sorting Protection PoE Power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power-

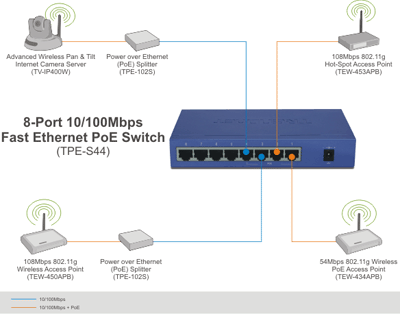

Networking Solution
