TRENDnet 8-Port Stackable Rack Mount USB KVM Switch with OSD

  Item Code: TK-804R
  Availability: Low Inventory. Please call.
  Price: $ 284.95

Accessories(3): add/edit accessories
Unavailable - Low Inventory. Please call.
$ 284.95


Overview
The 8-Port USB KVM Switch with On Screen Display (TK-804R) lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB interface on the PC side. Users can switch between PCs using hot-key, push button or On Screen Display for flexible management. Hot-plug PCs quickly to avoid downtime. A maximum of 64 PC connections are supported when you daisy chain multiple TK-804R(s). The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.
Features
  • 8-port stackable USB KVM switch with On Screen Display (OSD)
  • Console port supports both USB & PS/2 interface
  • Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and other MS compatible mice
  • Supports Windows 98SE / ME / 2000 / XP / 2003 Server / Vista, Linux, Mac OS and more
  • High video quality; up to 2048 x 1536 VGA resolution
  • Firmware upgradeable via computer’s serial port
  • On Screen Display (OSD) control for easy management
  • Adjustable auto-scan via OSD control for monitoring multiple computers
  • Keyboards status restored when switching between computers
  • LED display for easy status monitoring
  • Password protection with auto timeout logout
  • Auto-detect bank number when daisy-chaining

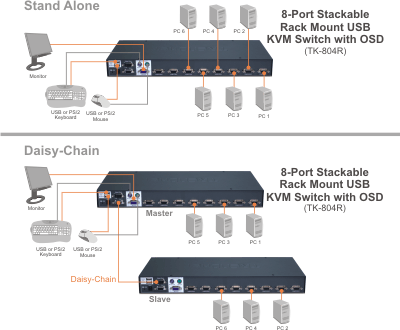

  • Built-in daisy-chain port for cascading up to 8 levels (64 computers)
  • Beeping sound for port switching confirmation (enable/disable)
  • Plug & play and hot-pluggable
  • Standard 19” (1U) rack mount design
  • 2-year warranty


Specifications
Hardware
Management

8 computes

Standard

USB 1.1 compliant

PC Port

8 x VGA HDB 15-pin (female)

Console Port
  • 1 x USB (type A)/ PS/2 mouse 6-pin mini din
  • 1 x USB (type A)/ PS/2 keyboard 6-pin mini din
  • 1 x VGA HDB 15-pin (female)
Supported  OS

Windows 95/98(SE)/ME/ 2000/NT/XP/2003 Server/Vista Linux, Mac and more

PC Selection

Hot-key, push buttons or On Screen Display Control (OSD)

Daisy Chain

8 levels (up to 64 computers)

Auto-Scan Interval

10-100 seconds (programmable through OSD menu)

LEDs

On-line (red), select (green)

Keyboard Status

Saved & restored

Power Adapter

9V DC 1A external power adapter

Dimensions

407 x 164 x 45mm (16 x 6.5x 1.8in)

Weight

1.89kg (4.17lb.)

Temperature
  • Operating: 0°C~40°C (32°F~104°F)
  • Storage: -20°C~60°C (-4°F~140°F)
Humidity

0%~80% (non-condensing)

Certification

CE, FCC




KVM Solution
