The 9dBi High Power Wireless Outdoor PoE Bridge/Access
Point provides secure Super G (108Mbps) wireless bridging in
a durable all-weather outdoor enclosure. This self-contained
product comes with a built-in directional antenna for professional
long distance wireless bridging applications. External antenna
can also be used for more challenging extended range projects.
Power is supplied through included Power over Ethernet injector,
resulting in equipment and installation cost savings.
Support for the latest wireless security protocols ensures the highest
level of network protection. A rugged UV-resistant aluminum housing (with
mounting brackets), features an IP65 waterproof rating and delivers optimal
performance in extreme weather conditions. Remote network management using
built-in web interface or SNMP makes this product an ideal solution for
rapid wireless network implementation. | Features |
- Features Super G technology with data rates up to 108Mbps
- Device powered by an Ethernet cable with Power over Ethernet
(PoE) technology
- Rugged waterproof aluminum housing and built-in antenna
for extreme weather conditions
- Wireless Super G compatible Access Point with Bridge and
Repeater modes
- Add additional high-gain antenna for extended range projects
- Advanced wireless security with 64/128/152-bit WEP (Wired
Equivalent Privacy) & WPA (Wi-Fi Protected Access)
- Provides SSID Broadcast enable/disable controls & 802.1x
Authentication Protocol support
- Feature rich device supports IPSec, PPTP, and L2TP VPN
pass-through
- Flash memory allows firmware upgrades, save/restore settings
and traffic logs
- Compatible with Windows 95/98/ME/2000/XP/Vista, Linux and
Mac OS
- Range of 802.11b @ 19dBm up to 5 km in Bridge (2 x 9dBi)
**
- Range of 802.11g @ 19dBm up to 2 km in Bridge (2 x 9dBi)
**
- 3-year warranty
|
| Specifications |
| Hardware |
| Standards |
Wired: IEEE 802.3 (10Base-T), and IEEE
802.3u (100Base-TX) Wireless: IEEE 802.11g |
| LED Indicator |
Power, WLAN (Wireless activity) |
| Antenna |
Built-in 9dBi Patch Antenna, Polarization,
V45° H45° |
| PoE |
RJ-45 Connector for Data & PoE
Support |
| EXT (50ohm) |
N-Type Female connector (TEW-ASAL1 is
required for use with TRENDnet high gain antennas) |
| Dimension (L x W x H) |
250 x 260 x 80 mm (9.8 x 10 x 3.1 inches) |
| Weight |
1.6kg (3.5 lbs) |
| Power Consumption |
7 Watts (Max.) |
| Management |
Web browser (Http), SNMP, Telnet |
| Wind Speed Support |
120km/h |
| Waterproof |
IP66 Compliant |
| Temperature |
-30°~ 65°C (-22°F~ 149°F) |
| Humidity |
Max. 95% (Non-Condensing) |
| Power |
PoE Injector & Power Cord Included |
| Certification |
CE, FCC |
| Wireless |
| Frequency |
2.400 to 2.4835GHz (Industrial Scientific
Medical Band) |
| Module Technique |
802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps),
DBPSK (1Mbps)
802.11g: OFDM, 16/64-QAM |
| Media Access Protocol |
CSMA/CA with ACK |
| Data Rate (auto-fallback) |
802.11b: 11Mbps, 5Mbps, 2Mbps and 1Mbps802.11g: 108Mbps, 54Mbps, 48Mbps, 36Mbps, 24Mbps, 12Mbps
and 6Mbps |
| Security |
64/128/152-bit
WEP (HEX/ASCII), WPA-PSK (AES/TKIP) for AP/Bridge, WPA (AES / TKIP) for
AP onlyEnable/Disable SSID Broadcast, MAC Address Filtering, VPN
Pass-Through |
| Output Power |
19dBm±1max. (Adjustable) |
| Receiving Sensitivity |
802.11b: -87dBm (typical) @ 11mpbs
802.11g: -73dBm (typical) @ 54Mbps |
| Channels |
1~11 channel (US), 1~13 channel (EU) |
|
|

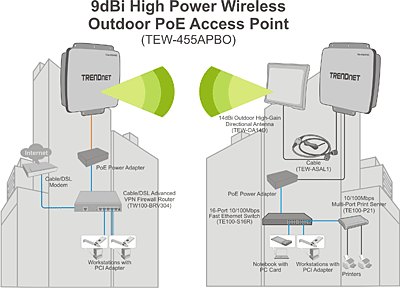

| Networking Solution |
** Effective wireless coverage may very depending on the wireless
device's output power, antenna gain, antenna alignment, receiving
sensitivity and radio interference. For optimal results, we recommended
that you consult a professional installer for site survey, safety
precautions and proper installation |
|
|
