TRENDnet Compact Bluetooth USB Adapter
| |
Item Code: |
TBW-105UB |
| |
Availability: |
In Stock. |
| |
Price: |
$
16.95 |
|
 |
$
16.95 |
|
|
 |
|
| Features |
- Compliant with Bluetooth v2.0 Specification with EDR (Enhanced Data Rate) support
- Backward compatible with Bluetooth v1.1 and v1.2 devices
- Support Full-Speed Bluetooth operation with Full Piconet support
- Support AFH (Adaptive Frequency Hopping) and Fast Connection – enhanced inquiry scan (immediate RHS response), LMP improvements, Parameter Ranges, Extended SCO (eSCO) SCO handle, Synchronization
- Support Scatternet and up to 7 active slave devices
- Up to 3Mbps Access Data Rate and Low Power Consumption
- Compatible with Windows 98SE/ME/2000/XP Operating Systems

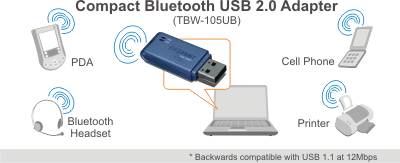

- Enable computers to connect Bluetooth enabled devices such as printers, headset, audio/video, basic Image, PDAs, and mobile phones
- Compliant with Class II Bluetooth Operations
- Communicates wirelessly up to 10 meters (32.8 ft.) (depends on the environment)
- Trouble free Plug-n-Play Installation
- 2-Year Warranty
|
|
| Specifications |
| Hardware |
| Standards |
- Class II Bluetooth v2.0 with EDR
- Backward Compatible with Bluetooth v1.1, v1.2
- USB 1.1
|
| Antenna |
Internal printed antenna |
| Supported OS |
Windows 98SE/ME/2000/XP |
| Power Consumption |
- Typical: 95mA; idle: 12mA
- Tx max: 136mA @19dBm; Rx max: 45mA
|
| Dimensions |
47 x 18 x 8 mm (1.85 x 0.7 x 0.3 in.) |
| Weights |
5g (0.18oz.) |
| Temperature |
- Operation: 0°~ 40°C (32°F~104°F)
- Storage: -10°~ 65°C (14°F~149°F)
|
| Humidity |
5%~95%RH (no condensation) |
| Emissions |
CE, FCC |
|
| Bluetooth |
| Frequency |
2.4 ~ 2.4835 GHz ISM Band |
| Module Technique |
GFSK (Gaussian Frequency Shift Keying). π/4 DQPSK, 8DPSK |
| Profile Support |
- DUN (Dial-up Networking)
- FAX
- BPP ( Basic Printing Profile)
- LAP (LAN Access Profile)
- SPP (Serial Port Profile)
- GAP (Generic Access Profile)
- HID (Human Interface Device)
- HCRP (Hardcopy Cable Replacement Profile)
- FTP (File Transfer Profile)
- OPP (Object Push Profile)
- A2DP (Advanced Audio Distribution Profile)
- GAVDP (Generic Audio/Video Distribution Profile)
- HSP (Headset Profile)
- PAN (Personal Area Networking)
- BIP (Basic Image Profile)
- SYNC (Synchronization Profile)
- AV (Audio Video)
- GOEP (Generic Object Exchange Profile)
|
| RF Output Power |
4dBm (typical) |
| Receiving Sensitivity |
-86dBm@0.1%BER (typical ) |
| Data Rate |
- Basic data rate: up to 723.2Kbps
- Enhanced data rate: up to 3Mbps
|
| Data Range |
Up to 10m (32.8 ft.) depends on environment |
|
| Bluetooth Solution |
|
|
|
|
|
