Item Code:	TK-IP101
	Availability:	In Stock.
	Price:	$ 449.95
	Accessories(3):
		$ 449.95



The Trendnet 1-Port KVM Switch over IP (TK-IP101) provides cost effective remote server management for multiple users, regardless of server status. Eliminate the need to physically be in the server room to troubleshoot, reboot and edit pre-boot functions. Save resources and manage server and PC resources from around corner or around the world. Provides highly secure access to both Windows and Java-based clients. With up to 16 active user accounts the TK-IP101 supports 4 concurrent logins. An intuitive Web user interface provides controls from BIOS level functions to Windows based applications. Use the TK-IP101 with the Trendnet's 8-Outlet Remote Power Controller (TK-RP08) to facilitate remote power cycling and rebooting.

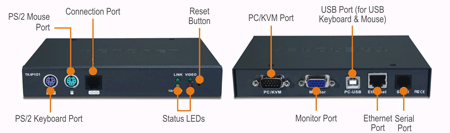

	Features: Manage KVM switches and servers remotely over the Internet Centralize management of multiple servers when connected to a conventional KVM switch Save time and resources by managing resources remotely Multiple user access control Management of remote servers from BIOS level up to GUI level applications Ultra secure access with full 1024-bit PKI authentication and 256-bit SSL encryption Enjoy crisp 1600x1200 resolution Intuitive Web user interface permits upgrades and backups Supports user friendly Telnet sessions and FTP access Use with TRENDnet’s TK-RP08 to control on/off power cycling of multiple devices remotely Works with LDAP, RADIUS and Active Directory Servers Ethernet RJ-45 and Serial PPP connections supported PPP connection over serial RS-232 interface with data rates up to 1 Mbps Works with Windows® and Java-based clients for cross-platform compatibility Low bandwidth Internet connections supported with JPEG compression 2-year limited warranty Specifications: Hardware Number Of Server Ports 1 x Server Or KVM Port Connectors 1 x HDB 15-Pin Male + Special Cable Assembly Providing VGA, PS/2 Mouse And PS2 Keyboard Connectors. 1 x USB Type B Remote Connections Multiple Connections [Shared/Private/View Only Session] Viewer Session Shared/View Only – Multiple Users / Private – 1 User Local Console Connectors 1 x PS/2 Keyboard 6-Pin Mini Din Female 1 x PS/2 Mouse 6 Pin Mini Din Female 1 x VGA HDB 15-Pin Female PC Port Connectors 1 x HDB15 (Integrated With PS/2 Keyboard And PS/2 Mouse 1 x USB Type B (For USB Keyboard And USB Mouse) Digital Connector Rj-45 Ethernet Interface 10/100 Base-T Connection With Auto-Sensing Serial Console Port (Front) RJ-12 Connector / 115200 Bps Max - Used Only For Console Management Serial Control Port (Back) RJ-12 / 1Mpbs High-Speed Serial For Connect To External Modem/ Power Control Device Server Control Remote Interface Win32 Viewer / JAVA Viewer Management With Any Browser Connected To The Embedded Web Server Via HTTPS Secure Connection Supported OS Windows 98(SE)/ME/ 2000/XP/2003 Server/Vista Security SSL, Encryption With 256-Bit Ephemeral Keys User Authentication Based On Password And PKI Certificates Video Resolution 1600 x 1200 Max. Keyboard Emulation PS/2 And USB Mouse Emulation PS/2 and USB Remote Power On/Off Yes* Power Input Dc 12V 2A Operation Temperature 0 ~ 50°C Storage Temperature - 20 ~ 60°C Humidity 0~90% RH, Non-Condensing Housing Metal / 0U Dimension (L x W x H) 16 x 11.5 x 2.5 Cm Safety / EMI Certification FCC, CE
