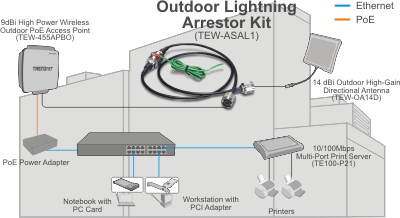

| Specifications |
| Surge Arrestor |
| Electrical Specifications |
| Frequency Range |
DC-3GHz |
| Tensile Strength |
50KG |
| VSWR |
1.5:1 Max (DC-3GHz) |
| Insertion Loss |
1.3dB Max (DC-3GHz) |
| DC Breakdown Voltage |
90V + 20% |
| Impulse Discharge Voltage |
5KA min (wave 8/20 μs)
10KV min (wave 1.2/50 μs) |
| Impedance |
50Ω |
| Insulation Resistance |
DC 50V > 10,000MΩ |
| Mechanical Specifications |
| Connector Interface |
N-Type male to N-Type male |
| Body Material (Arrestor) |
Copper |
| Temperature |
- 20°C ~ 70°C (-4°F ~158°F) |
Cable Length |
42 inches (1.1meter) |
| Weight |
230g (8oz) |
| Grounding
Wire Cable Specification |
| Wire cable |
18 AWG |
| Rating Voltage |
600V |
| Rating Temperature |
105°C (221°F) |
| Conductor Resistance |
6.64 MΩ/kft min 20°C) |
| Insulation Resistance |
2.5 MΩ/kft 20°C, in water) |
| Voltage Withstand Test |
2 kv/min, in water |
| Extension Cable Spec |
Inner Conductor (Solid BCCS) |
0.037 in. (0.94mm) |
Dielectric (Foam PE) |
0.110 in (2.79mm) |
Outer Conductor (Aluminum Tape) |
0.116 in (2.95mm) |
Overall Braid (Tinned Copper) |
0.139 in (3.53mm) |
Jacket (PE) |
0.195 in (4.95mm) |
Bend Radius: Installation |
0.5 in (12.7mm) |
Bend Radius: Repeated |
2.0 in (50.8mm) |
Bending Moment |
0.2 ft-Ib (0.27 N-m) |
Weight |
0.021 Ib/ft (0.03 kg/m) |
Tensile Strength |
40 Ib (18.2 kg) |
Flat Plate Crush |
15 Ib/in. (0.27 kg/mm) |
Cut-off Frequency |
41 GHz |
Velocity of Propagation |
80% |
Dielectric Constant |
1.56 |
Time Delay |
1.27 nS/ft (4.17 nS/m) |
Impedance |
50 ohms |
Capacitance |
25.4 pF/ft (80.3 pF/m) |
Inductance |
0.064 uH/ft (0.21 uH/m) |
Shielding Effectiveness |
＞ 90 dB |
DC Resistance (Inner Conductor) |
7.6 ohms/1000ft (24.9 ohms/km) |
DC Resistance (Outer Conductor) |
4.9 ohms/1000ft (16.1 ohms/km) |
Voltage Withstand |
1000 Volts DC |
Jacket Spark |
3000 Volts RMS |
Peak Power |
2.5 KW |
Storage Temperature range |
-70°~85° (-94°~ ~185°) |
Operating Temperature range |
-40°~85° (-40°~ ~185°) |
